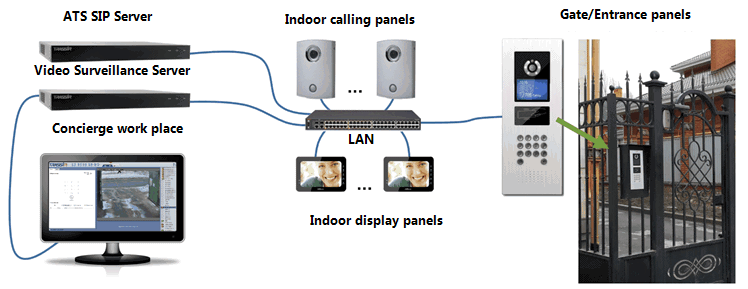

TRASSIR can combine your video surveillance system and IP-video door phone system into a unified complex.
The list of available features depends on the plugin and is defined by license.
Table 15.
| Feature | TRASSIR Video Intercom | TRASSIR Intercom | TRASSIR Intercom Concierge |
|---|---|---|---|
| Video record from IP-videophone entry system | + | ||
| Video/audio data synchronization from control panels and videosurveillance system devices | + | + | |
| Call recording and the archive maintenance | + | + | |
| Search for video/audio connection in the archive by the subscriber's number, date and time, call duration, outgoing, incoming and missed calls | + | + | |
| IP-videophone device status monitoring | + | + | |
| A full scale SipPhone in the operator interface | + | ||
| Keeping the call log | + |
All of that is possible due to the to dial exchange IP integration to TRASSIR Asterisk.
Important
TRASSIR software works with Asterisk 11.13.1 version and FreePBX 12.0.33 version
Upgrade Asterisk software in case you use earlier versions.
See below plugin settings procedure. The plugin operation principles are described in "Operator's Guide" (SIP phone operation).
