Main control panel

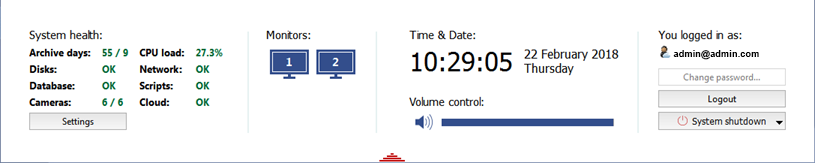

After signing in, the main control panel is grouped as follows:

  1. System Health - are server operation parameters allowing to immediately identify the errors which are critical for its operation. See detailed information on system health in "Operator's Manual" (System health)

    The Settings button - opens the settings window.

  2. The Monitors group - the button to show / hide the operator interface. If several monitors are connected to the computer system unit, then there will be several icons for hiding / showing the interface (each monitor has its own interface).

    After installation, the operator interface is hidden. Click on the monitor image to display. Click one more time to hide the video monitor interface again. You can read more about working with the monitor interface in the "Operator's Guide" (Video monitor interface settings).

    Tip

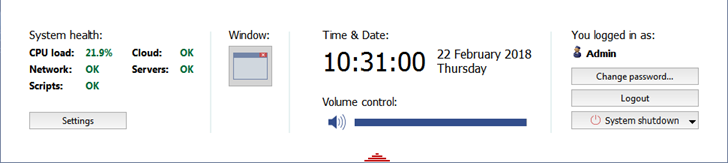

    When the window display of the video monitor on the client is used, the main control panel looks as follows:

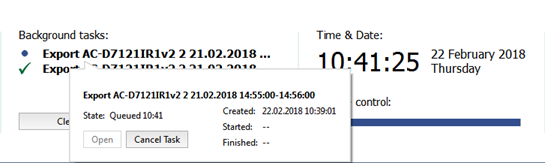

  3. The Background tasks group shows a list of tasks whose execution has been postponed. The delayed export of an archive is an example of such a task.

    Simply left-click on a task to view its status. A popup window with the information will appear. You can cancel the task in this window by clicking the appropriate button.

    The icon next to the task changes depending on its current status:

    - indicates a task waiting in the queue to be executed;

    - indicates a completed task.

    The Clear button removes all completed tasks from the list.

    Tip

    This group will only appear on the main control panel if there are background tasks currently scheduled in the system.

  4. The Time & Date - group displays the server's system date and time.

    Volume - use the slider, to adjust the overall volume of the sound.

  5. The You logged in as: group displays the username for the person who is currently signed in.

    The Change password... button allows users to change their own passwords.

    The Logout button lets the system's current user sign out.

    The System shutdown button brings up the following dropdown menu:

    • Stop TRASSIR - shuts down the software.
    • Reboot Server - restarts the server the operator is using.
    • Shutdown Server - shuts down the server the operator is using.

    Tip

    After changing the Admin user password, the Limited Functionality Mode will be enabled on the server.

    Read more about this mode in License.

    Tip

    If the server was started in "no restart after failure" mode, then when the System shutdown button is clicked, the dropdown menu will not be shown. Instead, the software will be closed.

See also
