Connecting TRASSIR cameras or video recorders

Warning

Before you connect the recorder to the cloud, make sure that the values of the network ports are set to default.

On camera/video recorder:

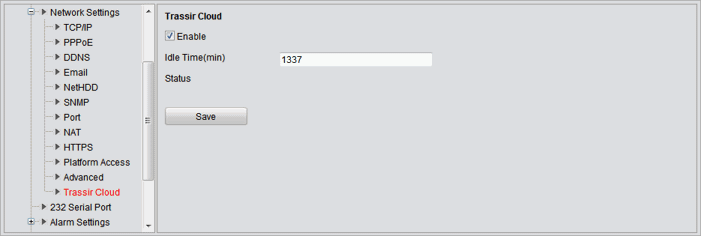

  1. Open network settings page in the device's WEB-interface and find the TRASSIR Cloud tab

    Tip

    If there is no TRASSIR Cloud tab, update your device's software. You can find a detailed guide and the latest software version on our website.

  2. Check the Enable box, and in the Idle Time(min) field enter the period of time over which the device will be available for connecting to the cloud.

    Important

    Upon the specified time period, the device cloud connection capability will stop. Restart the device to resume it.

    This guarantees that the device's connection to the cloud is being made specifically by you, and that only you have access to its video data.

  3. Save the settings.

In the cloud:

  • Step 1.

    Click Add device button on the Monitoring Center page.

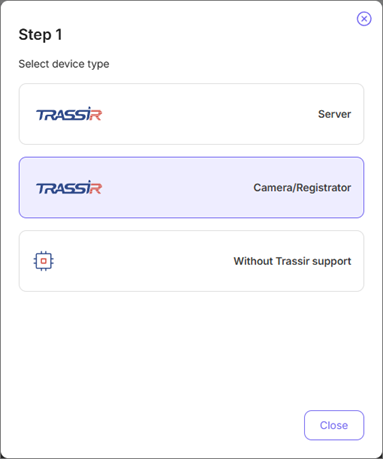

  • Step 2.

    Click TRASSIR (camera/video recorder) button.

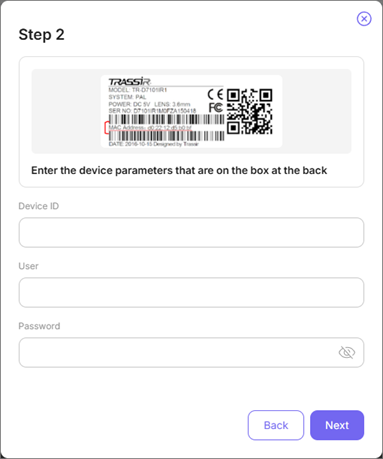

  • Step 3.

    Enter the Device ID located on the label.

    Enter Username and Password, and click the Next button.

    Important

    The selected user should have the rights to change the device settings.

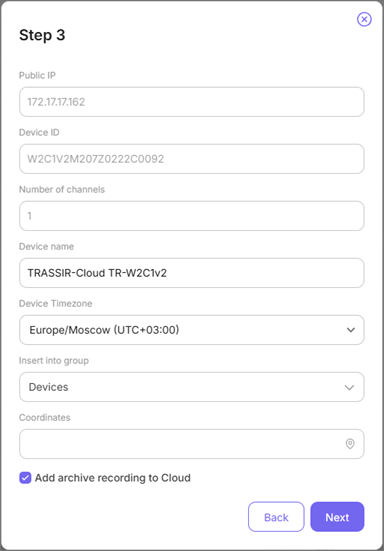

  • Step 4.

    Wait a few seconds while the cloud connects with the IP device. After the connection is established, verify the model of the connected device in the Device name field and complete the connection by clicking the Next button.

Tip

Monitor the camera connection process in the web interface using messages in the Status field:

  • Unknown Status - the cloud connection feature is disabled.
  • Connected to TRASSIR Cloud, idle - a connection with TRASSIR Cloud is established. Connect the camera to the cloud.
  • No connection to TRASSIR Cloud - there is no connection with TRASSIR Cloud.
  • Connected to TRASSIR Cloud, working - the camera is connected. The video is being transmitted to the cloud.
  • "Idle Timeout" reached, service stopped - the time required for the connection of the camera to the cloud has expired.

Tip

In order to transfer data via local network, the connected device and TRASSIR CMS should use the same DNS.
